| Body Material | : | Brass |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Sweat |
| Connection Type 2 | : | Rotating Flange |
| Function Type | : | Ball Valve |
| Height | : | 2-9/16 in |
| Maximum Operating Temperature | : | 250 deg F |
| Maximum Working Pressure | : | 600 WOG |
| NSF Certified | : | Yes |
| Operator Type | : | T-Handle |
| Product Family | : | 5140 Series |
| Product Type | : | Ball Valve |
| Width | : | 4-1/8 in |

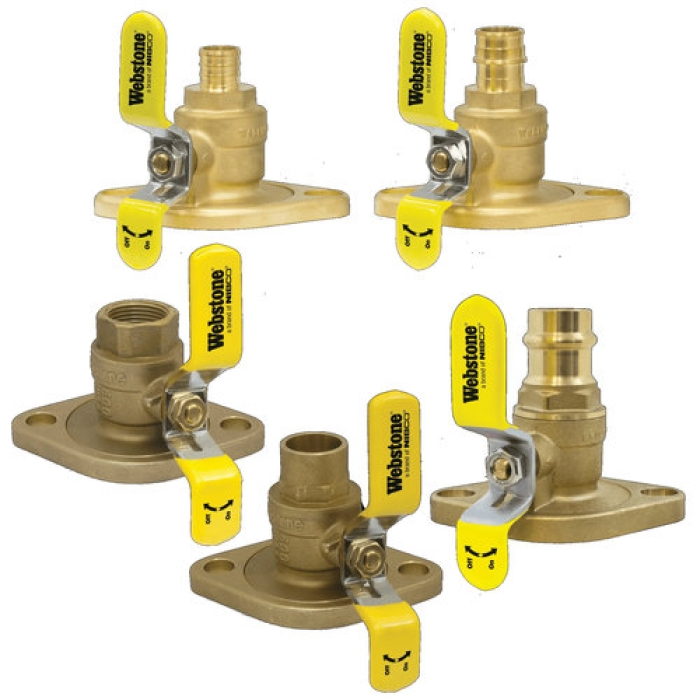

Webstone Uni-Flange Ball Valve, 3/4 in Connection Size 2, Connection Type 1: Sweat, Connection Type 2: Rotating Flange, Brass Body, 600 WOG Maximum Working Pressure, T-Handle Operator
Easily Isolates the Pump for ReplacementPrevents Electrolysis and Eliminates Galvanic Corrosion Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation Flange Features a Conical Inlet to Minimize Turbulence Fits Virtually Any Standard Circulator Pump Saves 18 Minutes Replaces 3 Components Eliminates 2 Leak Paths This valve is actuated by a blowout proof stem. Adjustable Packing Gland
