Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port
Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port
Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port
Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port
Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port
Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port

Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port

Webstone H-x864 Series H-58655 Ball Valve, 1-1/4 in x 1-1/4 in, Sweat x Sweat, Brass Body, PTFE Seal, Full Port

Manufacturer: NIBCO Inc
Brand: Webstone
Part #: 58130
MPN: H-58655
CPN:
Body Material      :      Brass
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Sweat
Connection Type 2      :      Sweat
Maximum Working Pressure      :      600 psi
Operating Temperature Rating      :      250 deg F
Operator Type      :      Handle
Port Type      :      Full
Product Family      :      H-x864 Series
Seal Material      :      PTFE
Width      :      7 in

Webstone Ball Valve, 1-1/4 in Connection Size 1, 1-1/4 in Connection Size 2, Connection Type 1: Sweat, Connection Type 2: Sweat, Brass Body, PTFE Seal, Full Port, 600 psi Maximum Working Pressure, 7 in Width, Handle Operator, 250 deg F Operating Temperature, Product Family: H-x864 Series

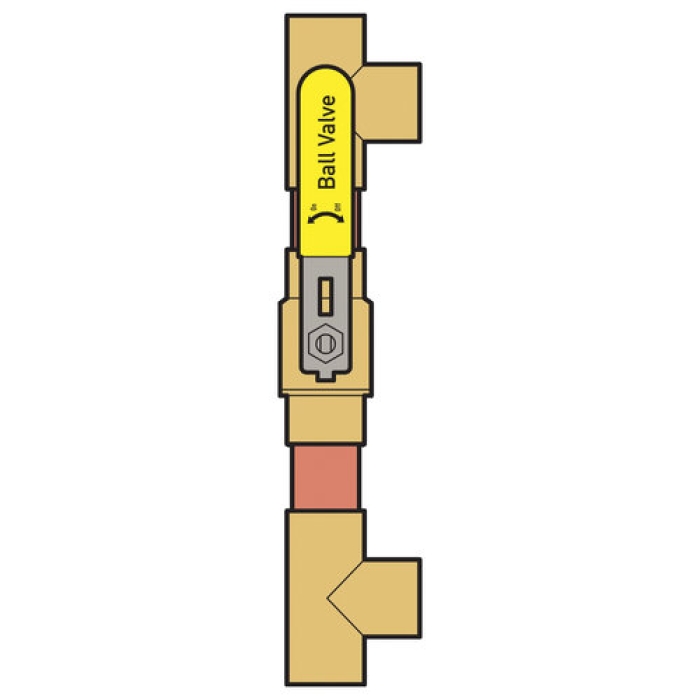

The Only Way to Place a Ball Valve Between Two Closely Spaced Tees
  • Precision Crafting Achieves Hydraulic Separation
  • Saves 36 Minutes
  • Replaces 5 Components
  • Eliminates 4 Leak Paths
  • This valve is actuated by a blowout proof stem
  • Adjustable Packing Gland
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_13706HV_Catalog.pdf
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_41404_Instruction_Installation_Manual.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_58644_Specification_Sheet.pdf
    • Warranty Information https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_13706HV_Warranty_Information.pdf
