Manufacturer: NIBCO Inc
Brand: Webstone
Part #: 72448
MPN: H-80614
CPN:
Body Material      :      Brass
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Press
Connection Type 2      :      Press
Maximum Working Pressure      :      250 psi
NSF Specifications      :      NSF/ANSI 14, NSF/ANSI/CAN 61/372
Operating Temperature Rating      :      250 deg F
Operator Type      :      Handle
Port Type      :      Full
Product Family      :      H-x061 Series
Seal Material      :      PTFE
Width      :      4.81 in

Webstone Ball Valve, 1 in Connection Size 1, 1 in Connection Size 2, Connection Type 1: Press, Connection Type 2: Press, Brass Body, PTFE Seal, Full Port, 250 psi Maximum Working Pressure, 4.81 in Width, Handle Operator, 250 deg F Operating Temperature, NSF Specifications: NSF/ANSI 14, NSF/ANSI/CAN 61/372, Product Family: H-x061 Series

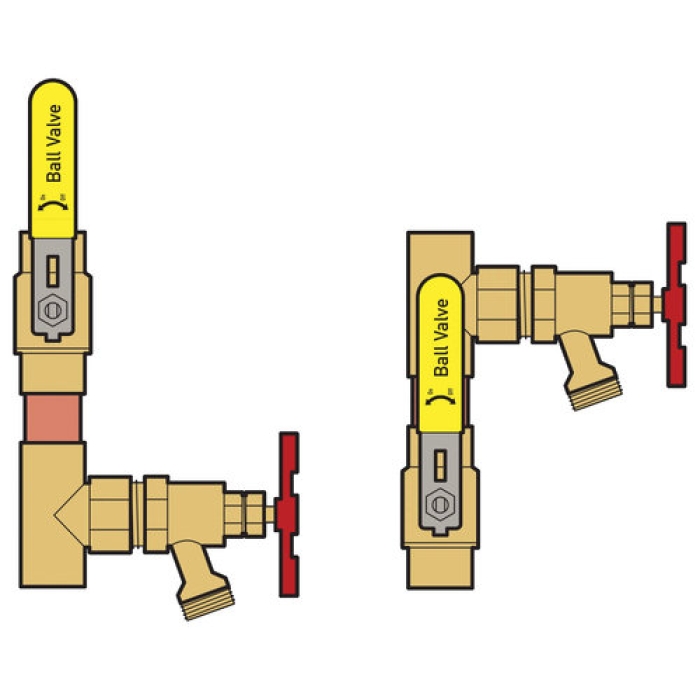

Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System
  • Reversible Handle for Added Versatility
  • Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
  • Saves 27 Minutes
  • Replaces 4 Components
  • Eliminates 3 Leak Paths
    • Catalog https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_13706HV_Catalog.pdf
    • Instruction/Installation Manual https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_50613_Instruction_Installation_Manual.pdf
    • Specification Sheet https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_50613_Specification_Sheet.pdf
    • Warranty Information https://www.apiofnh.com//ASSETS/DOCUMENTS/ITEMS/EN/Webstone_H_13706HV_Warranty_Information.pdf
