| Body Material | : | Brass |
| Connection Size 1 | : | 1-1/4 in |
| Connection Size 2 | : | 1-1/4 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Rotating Flange |
| For Use With | : | Standard and High Velocity Pumps |
| Function Type | : | Ball Valve |
| Height | : | 4.44 in |
| Maximum Operating Temperature | : | 250 deg F |
| Maximum Working Pressure | : | 250 psi |
| NSF Certified | : | Yes |
| Product Family | : | 8140 Series |
| Product Type | : | Ball Valve |

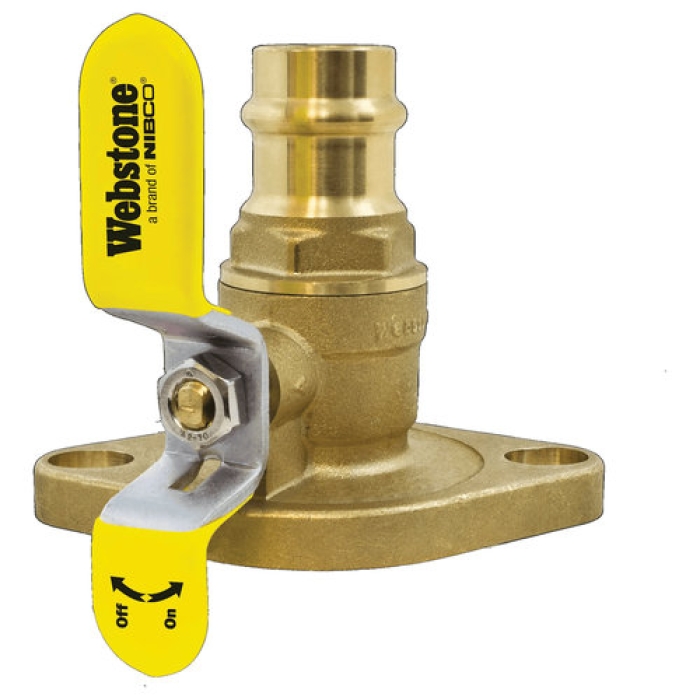

Webstone Uni-Flange Ball Valve, 1-1/4 in Connection Size 2, Connection Type 1: Press, Connection Type 2: Rotating Flange, Brass Body, 250 psi Maximum Working Pressure
Easily Isolates the Pump for ReplacementPrevents Electrolysis and Eliminates Galvanic Corrosion Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation Flange Features a Conical Inlet to Minimize Turbulence Fits Virtually Any Standard Circulator Pump Saves 18 Minutes Replaces 3 Components Eliminates 2 Leak Paths This valve is actuated by a blowout proof stem. Adjustable Packing Gland
