| Amperage Rating | : | 0.54 A |
| BTU Rating | : | 486000 Btu/hr |
| Body Material | : | Aluminum |
| Frequency | : | 50/60 Hz |
| Fuel Type | : | Liquid Propane, Natural Gas |
| Function Type | : | Gas Valve |
| Gas Valve Inlet Size | : | 3/4 in |
| Gas Valve Outlet Size | : | 3/4 in |
| Height | : | 4.973 in |
| Ignition Type | : | Direct Spark, Hot Surface |
| Inlet Gas Pressure Range | : | 2.5 to 5 in-WC Natural Gas, 4 to 9.5 in-WC Liquid Propane |
| Maximum Working Pressure | : | 0.5 psi |
| Number of Stages | : | 2 |
| Operating Temperature Rating | : | -40 to 175 deg F |
| Product Family | : | 36H Series |
| Product Type | : | Gas Valve |
| Voltage Rating | : | 24 V |
| Width | : | 3.259 in |

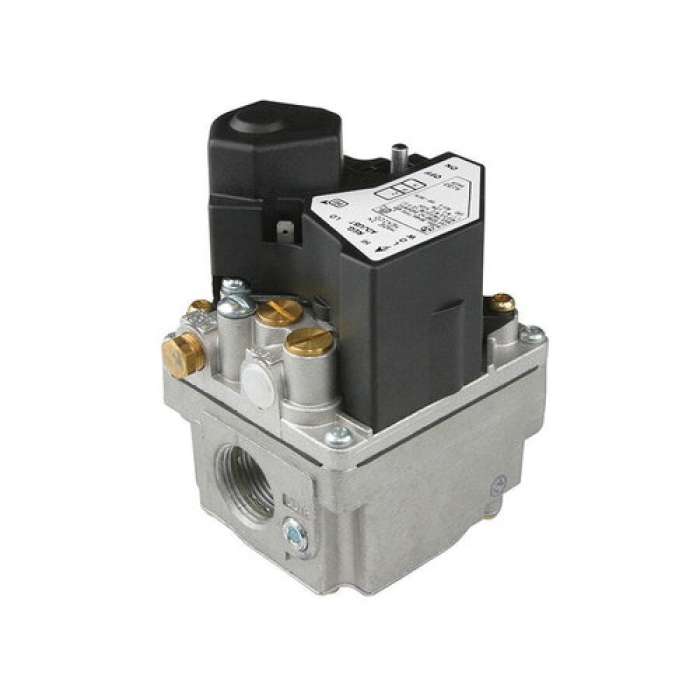

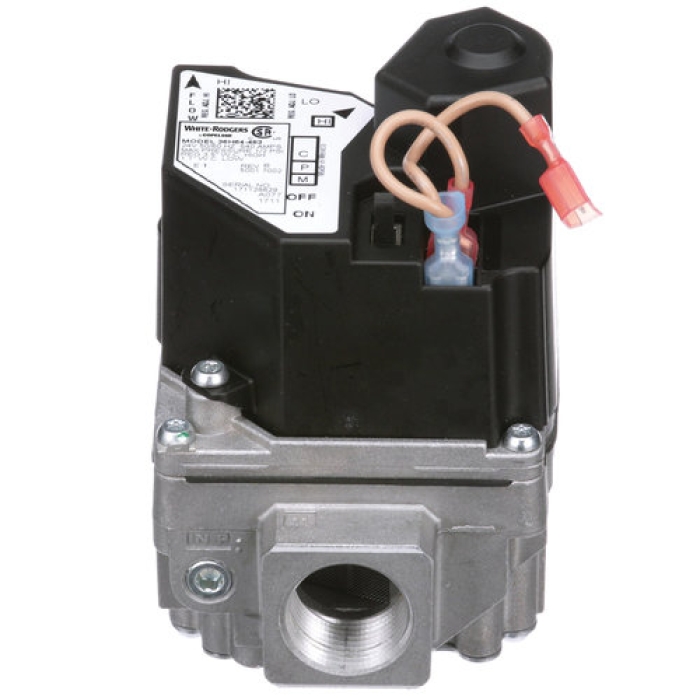

Electronic Ignition Gas Valve. Our highest capacity Series multi-function Combination Control covering a wide range of gas heating applications.
WHITE-RODGERS™ Fast Open Gas Valve, Liquid Propane, Natural Gas Fuel, 2 Stages, 24 V, Direct Spark, Hot Surface Ignition, 3/4 in Gas Valve Inlet Size, 3/4 in Gas Valve Outlet Size, 486000 Btu/hr, Aluminum Body, 2.5 to 5 in-WC Natural Gas, 4 to 9.5 in-WC Liquid Propane Inlet Gas Pressure Range, 0.5 psi Maximum Working Pressure, 0.54 A, 50/60 Hz Frequency, 4.973 in Height, 3.259 in Width, -40 to 175 deg F Operating Temperature, Product Family: 36H Series
Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent / Proven Pilot systemsFast open, single stage Electric on-off switch and convenient quick connect coil terminals Tamper resistant screws and controlled gasket compression to withstand high inlet pressures Mounting position upright, or 0-90 deg. from upright in any direction
