| Amperage Rating | : | 0.43 A |
| BTU Rating | : | 226800 Btu/hr |
| Body Material | : | Aluminum |
| Frequency | : | 50/60 Hz |
| Fuel Type | : | Liquid Propane, Natural Gas |
| Function Type | : | Gas Valve |
| Gas Valve Inlet Size | : | 1/2 in |
| Gas Valve Outlet Size | : | 1/2 in |
| Height | : | 4.243 in |
| Ignition Type | : | Direct Spark, Hot Surface |
| Inlet Gas Pressure Range | : | 2 to 5 in-WC Natural Gas, 4 to 10 in-WC Liquid Propane |
| Maximum Working Pressure | : | 0.5 psi |
| Number of Stages | : | 2 |
| Operating Temperature Rating | : | -40 to 175 deg F |
| Product Family | : | 36J Series |
| Product Type | : | Gas Valve |
| Product Weight | : | 1.8 lb |
| Voltage Rating | : | 24 V |
| Width | : | 4.693 in |

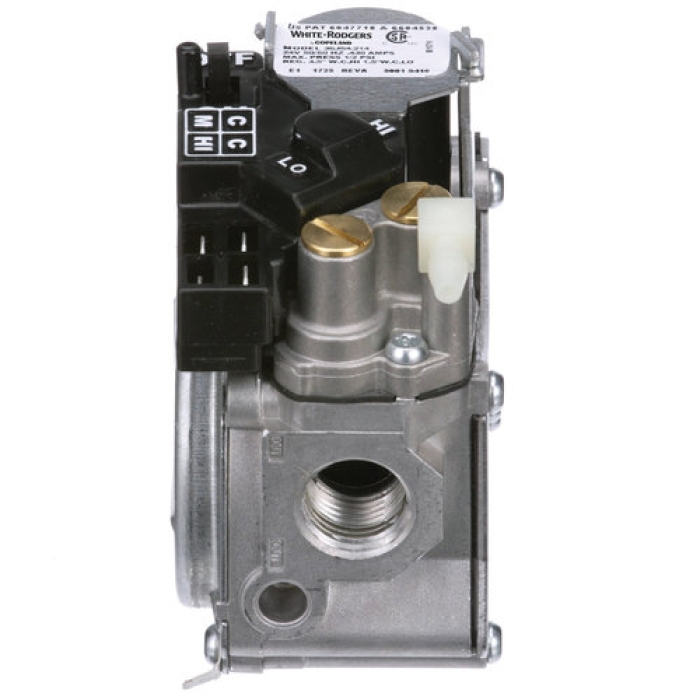

Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.
WHITE-RODGERS™ Fast Open Gas Valve, Liquid Propane, Natural Gas Fuel, 2 Stages, 24 V, Direct Spark, Hot Surface Ignition, 1/2 in Gas Valve Inlet Size, 1/2 in Gas Valve Outlet Size, 226800 Btu/hr, Aluminum Body, 2 to 5 in-WC Natural Gas, 4 to 10 in-WC Liquid Propane Inlet Gas Pressure Range, 0.5 psi Maximum Working Pressure, 0.43 A, 50/60 Hz Frequency, 4.243 in Height, 4.693 in Width, -40 to 175 deg F Operating Temperature, Product Family: 36J Series
Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile rangeFast open, single models. Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps Tamper resistant screws and controlled gasket compression to withstand high inlet pressures Mounts in any position including upside down
