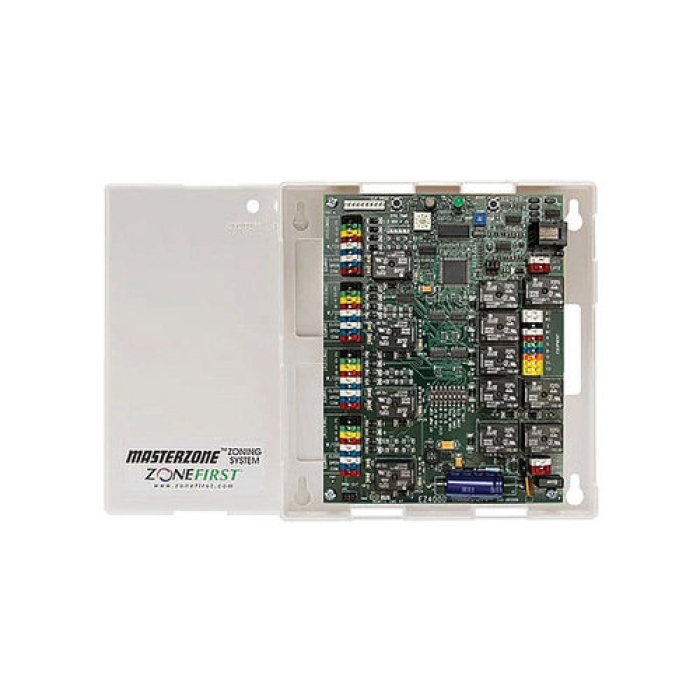

Zonefirst® Masterzone™ MZS4 All-in-One Zone Control Panel, 4-Zone, 4H/2C-Stage, 24 V, Maximum Dampers Per Zone: 10

The MasterZone Control Panel is the only panel needed to provide multiple zone control of any forced air heating and cooling system. The MZS4 panel is compatible with any type of thermostat and controls up to 3 stages of heating and cooling as well as heat pumps. It is expandable up to ten (10) zones by adding the MZA ZONE-ADDER panels. Built-in LEDs provide continuous system operation readout and color coded screw less terminal blocks provide easy wiring. Standard single stage thermostats can be used to control two-stage and heat pump systems. Built-in second stage time or the number of zones calling brings on the second stage and the ZPS sensor provides capacity protection control for the HVAC Unit. The MZ panels have a built-in self resetting fuse to protect the transformer. Other features are zone indicator lights, adjustable heating high limit temperature for ZPS sensor, override button for time delay and a re-boot button for quick re-start.

Zonefirst® Masterzone™ All-in-One Zone Control Panel, 4H/2C Stages, 24 V, 10 Dampers Per Zone, For Use With: RDS, RTS, ZDS and ZDB Dampers, Compatible Models: RDS, RTS, ZDS, ZDB
