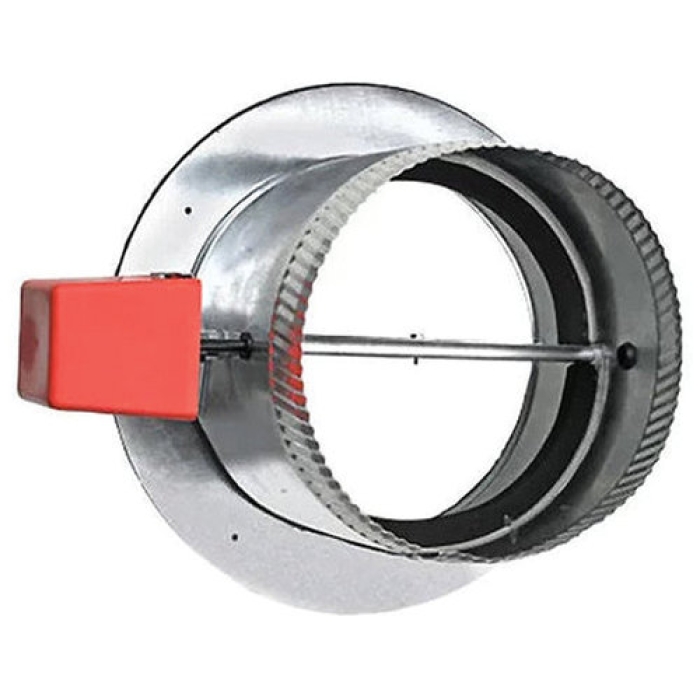

Zonefirst® RTS Series RTS12 Take-Off Zone Damper With MSS Spring Return Motor, Round Duct, 12 in Dia, 24 V, 7 in L
Zonefirst® RTS Series RTS12 Take-Off Zone Damper With MSS Spring Return Motor, Round Duct, 12 in Dia, 24 V, 7 in L
| Actuator Type | : | Spring Return |
| Diameter | : | 12 in |
| Duct Shape | : | Round |
| Function Type | : | Zone Damper |
| Length | : | 7 in |
| Material Gauge | : | 26 ga |
| Material | : | Galvanized Steel |
| Motorized | : | Yes |
| Product Family | : | RTS Series |
| Voltage Rating | : | 24 V |
The round take-off damper is a combination adhesive take-off collar and motorized damper. The RT has three models for each different motor. The RTP is our exclusive plug-in damper motor which includes 25 ft of modular cord and is used with only the plug-in zoning panels. The RTM is the 24 V. power open-closed, three wire motor, also used as a motorized by-pass. The RTS is the 24 V spring return motor. All dampers operate as the RD dampers above except are in a take-off collar. The adhesive seal provides and air tight seal to the duct to eliminate leakage.
Zonefirst® Take-Off Zone Damper, Round Duct, 12 in Diameter, 24 V, Spring Return Actuator, Motorized: Yes, 7 in Length, Galvanized Steel, Material Gauge: 26 ga
