Zonefirst® ZDS Series ZDS1010 Side-Mount Zone Damper, Square Duct, 24 V, Spring Return, Motorized: Yes, 10 in L
Zonefirst® ZDS Series ZDS1010 Side-Mount Zone Damper, Square Duct, 24 V, Spring Return, Motorized: Yes, 10 in L

Zonefirst® ZDS Series ZDS1010 Side-Mount Zone Damper, Square Duct, 24 V, Spring Return, Motorized: Yes, 10 in L

Zonefirst® ZDS Series ZDS1010 Side-Mount Zone Damper, Square Duct, 24 V, Spring Return, Motorized: Yes, 10 in L

Manufacturer: Zonefirst
Brand: Zonefirst®
Part #: 27832
MPN: ZDS1010
CPN:
Actuator Type      :      Spring Return
Duct Shape      :      Square
Function Type      :      Zone Damper
Length      :      10 in
Material      :      Aluminum
Motorized      :      Yes
Product Family      :      ZDS Series
Voltage Rating      :      24 V
Width      :      10 in

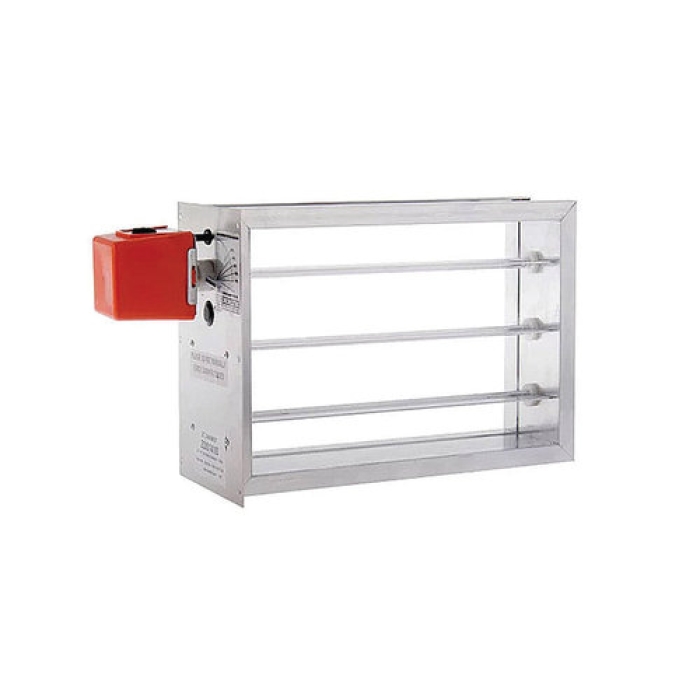

The ZD dampers are sturdy extruded aluminum frame, parallel blade dampers with 3 in blades for long life and silent operation. Each blade pivots on a self-lubricating bushing for smooth quiet operation and long life. The ZD comes in two styles, side-mount where the motor and end plate are on the height dimension and the bottom-mount where the motor and end plate are on the width dimension. The ZD damper is available with different power actuators.

Zonefirst® Side-Mount Zone Damper, Square Duct, 24 V, Spring Return Actuator, Motorized: Yes, 10 in Length, 10 in Width, Aluminum

2-wire 24 V power close spring return zone dampers
  • Motor is located on the listed height dimension
  • Can be reversed in the field to spring close/ power open (model: ZDSC)
  • For dampers larger than 24x16 we recommend using the MDM or MP12 motor
  • For dampers larger than 24x24 we recommend using the MDM motor
