Zonefirst® ZDSP Series ZDSP1408 Plug-In-Play Side-Mount Zone Damper With MP12M Plug-In Motor, Rectangular Duct, 12 V
Zonefirst® ZDSP Series ZDSP1408 Plug-In-Play Side-Mount Zone Damper With MP12M Plug-In Motor, Rectangular Duct, 12 V

Zonefirst® ZDSP Series ZDSP1408 Plug-In-Play Side-Mount Zone Damper With MP12M Plug-In Motor, Rectangular Duct, 12 V

Zonefirst® ZDSP Series ZDSP1408 Plug-In-Play Side-Mount Zone Damper With MP12M Plug-In Motor, Rectangular Duct, 12 V

Manufacturer: Zonefirst
Brand: Zonefirst®
Part #: 40265
MPN: ZDSP1408
CPN:
Duct Shape      :      Rectangular
For Use With      :      Plug-In Panels
Function Type      :      Zone Damper
Length      :      14 in
Material      :      Aluminum
Motorized      :      Yes
Product Family      :      ZDSP Series
Voltage Rating      :      12 V
Width      :      8 in

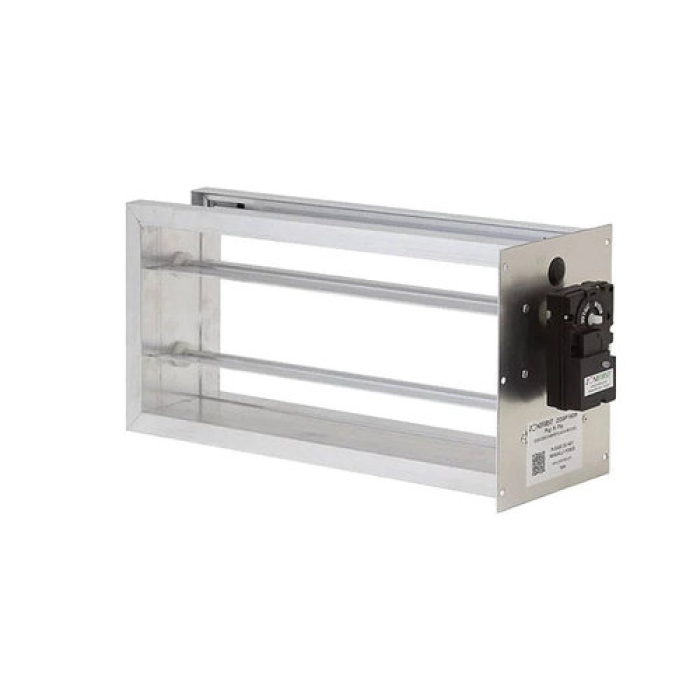

The ZD dampers are sturdy extruded aluminum frame, parallel blade dampers with 3 in blades for long life and silent operation. Each blade pivots on a self-lubricating bushing for smooth quiet operation and long life. The ZD comes in two styles, side-mount where the motor and end plate are on the shorter dimension and the bottom-mount where the motor and end plate are on the longer dimension. The ZD damper is available with different power actuators.

Zonefirst® Plug-In-Play Side-Mount Zone Damper, Rectangular Duct, 12 V, Motorized: Yes, 14 in Length, 8 in Width, Aluminum, For Use With: Plug-In Panels

ZDSP (side-mount) is a plug-in 12 VDC power open/close zone damper
  • Daisy chain up to 10 dampers on each zone
  • 25 ft modular cord included with each damper
  • Used with plug-in panels only
  • Motor is on the listed height dimension
