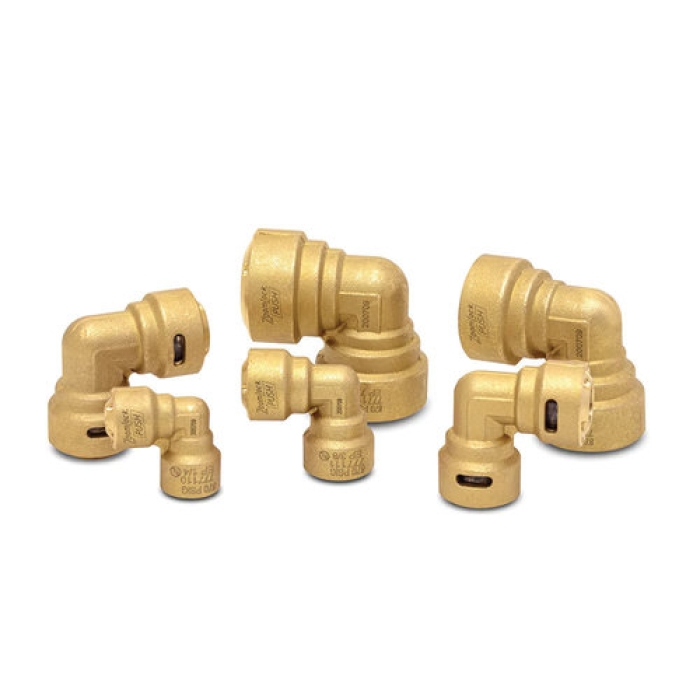

ZoomLock® 777110 90 deg Elbow, 1/4 in x 1/4 in, Push-to-Connect x Push-to-Connect, 870 psig Max Working Pressure
ZoomLock® 777110 90 deg Elbow, 1/4 in x 1/4 in, Push-to-Connect x Push-to-Connect, 870 psig Max Working Pressure
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Push-to-Connect |
| Connection Type 2 | : | Push-to-Connect |
| Fitting Type | : | Elbow |
| Function Type | : | Elbow |
| Material | : | Brass |
| Maximum Working Pressure | : | 870 psig |
| Operating Temperature Rating | : | 250 deg F |
| Reducing | : | No |
| Refrigerant Type | : | R-134A, R-410A |
Parker ZoomLock® push is a tool-free design that allows the contractor to successfully make leak-free connections without the use of a brazing torch or other tools. ZoomLock® push reduces installation costs, is more repeatable than brazing, improves system cleanliness and creates secure leak-free tube connections without requiring press tools for installation. These fittings are optimized for R-410A applications.
ZoomLock® 90 deg Elbow, 1/4 in Connection Size 1, 1/4 in Connection Size 2, Connection Type 1: Push-to-Connect, Connection Type 2: Push-to-Connect, 870 psig Maximum Working Pressure, Brass, R-134A, R-410A Refrigerant, Reducing: No, 250 deg F Operating Temperature
