THE UNIT HEATER
YOUALREADY TRUST.
NOW ON OUR SHELF.
Unit heaters may not be the star of the show, but they play a vital role in keeping spaces warm and comfortable.
API now carries Modine, 30 to 400 MBH.
WHY MODINE
Four reasons contractors keep coming back to it.
A simple product that’s hard to get wrong. Modine has been one of the best in the category for decades.
Fast to hang.

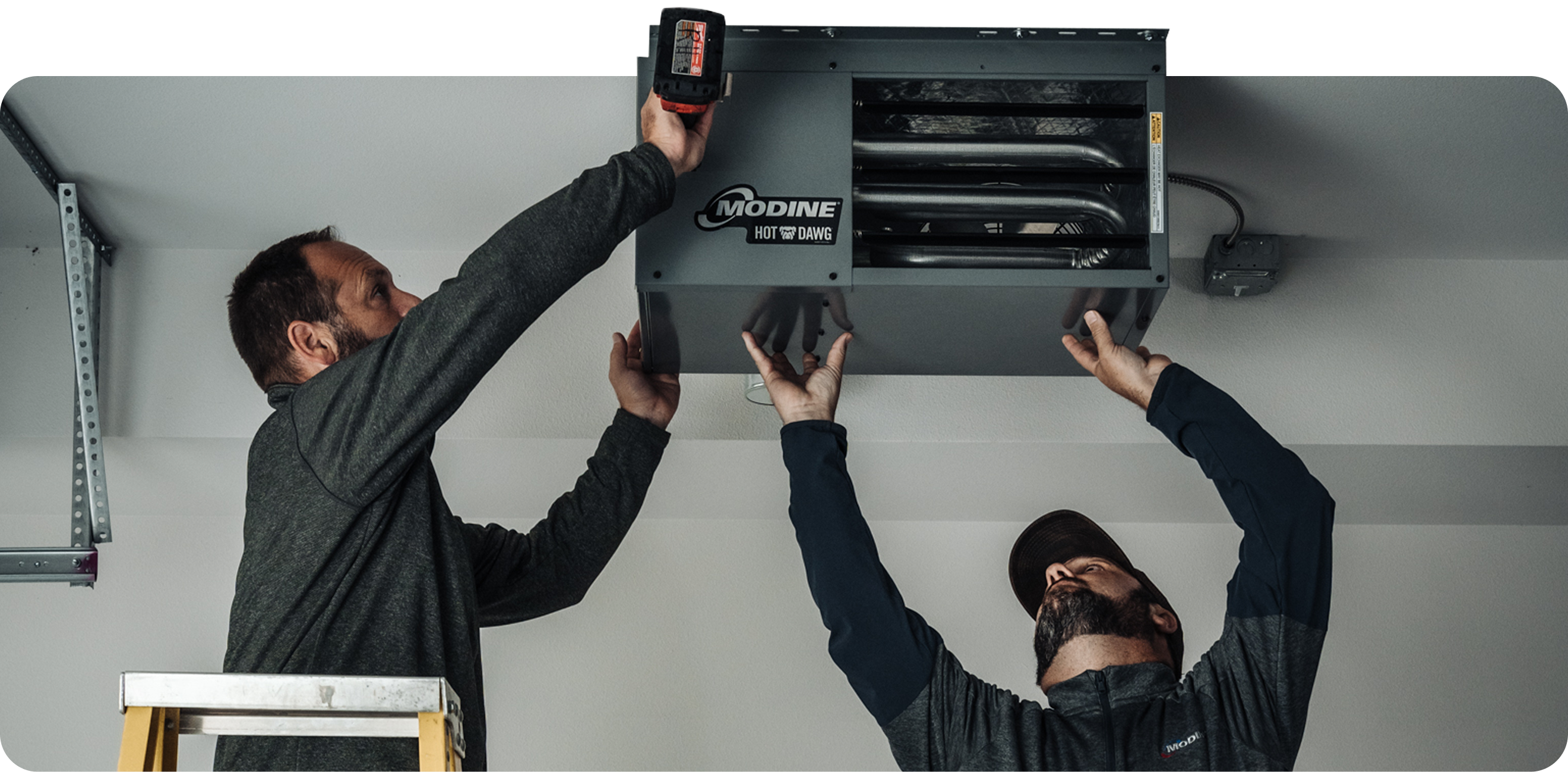

Hot Dawg installs 1" from the ceiling with two angle brackets (sizes 30 to 75). PTP ships with an external junction box, on/off switch, and status light, so wiring is quick.
Lights every time.
Direct spark ignition with continuous retry. If it doesn’t light on the first try, it keeps trying until it does.
Built to last.

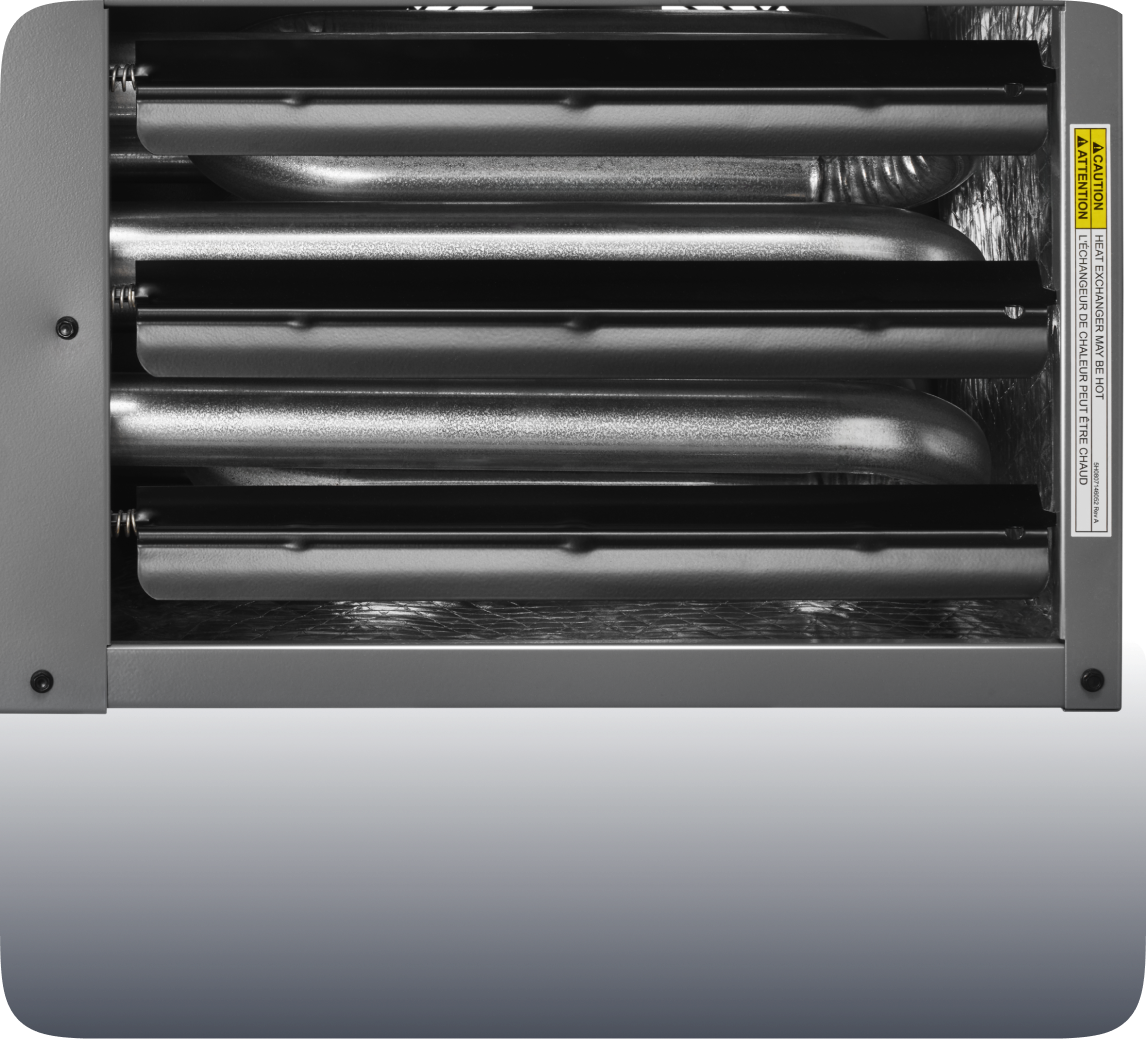

Aluminized steel heat exchanger and a baked-on powder coat finish. Hot Dawg carries a full 10-year warranty on the heat exchanger.
Quiet in the space.

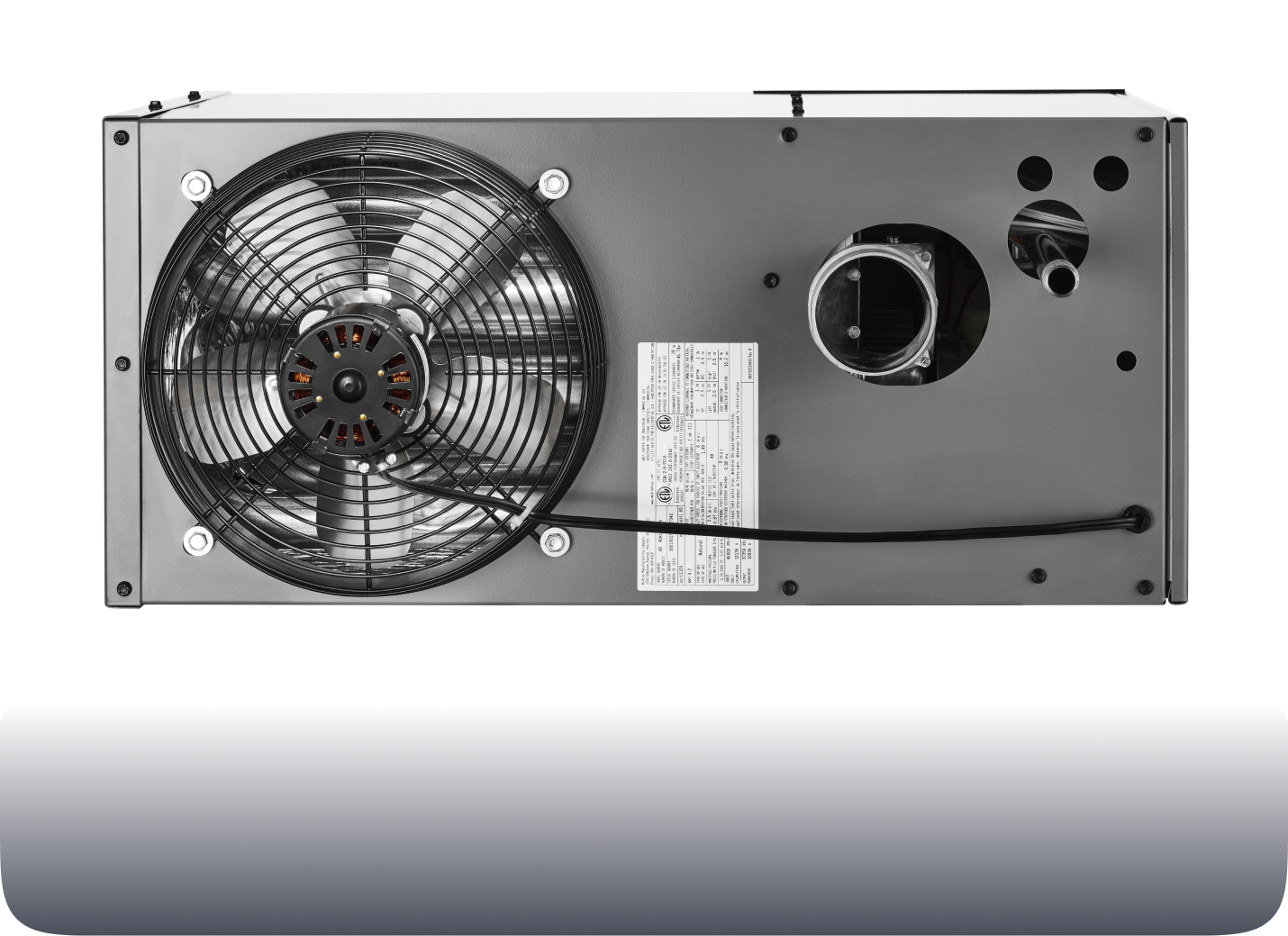

Fans built for quiet running, with in-shot burners that stay quiet on ignition and shutoff.
Pick it by the BTU.
Two lines, 12 sizes, one shelf. Match the output to the heat loss of the space and you’re done.

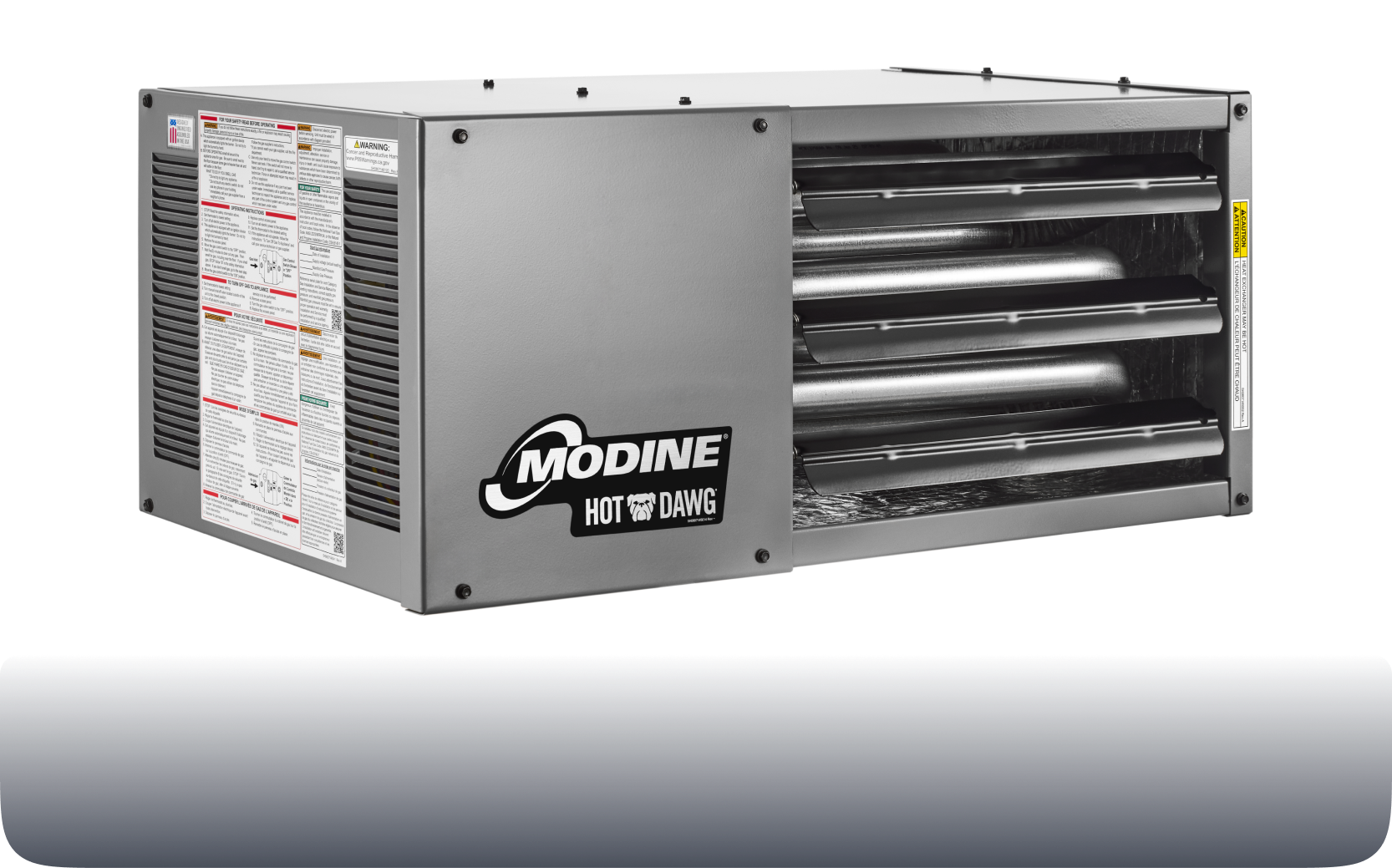

Hot Dawg HD
30 to 125 MBHLow-profile propeller unit. Works in shops, garages, service bays, and small warehouses. Certified for both residential and commercial use.
HD30
24,900
BTU/hr output
10 ft max mount
25 ft heat throw
HD45
37,350
BTU/hr output
10 ft max mount
27 ft heat throw
HD60
49,800
BTU/hr output
12 ft max mount
36 ft heat throw
HD75
62,250
BTU/hr output
14 ft max mount
38 ft heat throw
HD100
82,000
BTU/hr output
12 ft max mount
42 ft heat throw
HD125
102,500
BTU/hr output
16 ft max mount
56 ft heat throw
PTP
150 to 400 MBHThe bigger unit for warehouses, distribution centers, and large commercial spaces. Same tubular heat exchanger and direct spark ignition, plus more reach.
PTP150
123,000
BTU/hr output
15 ft max mount
51 ft heat throw
PTP175
143,500
BTU/hr output
14 ft max mount
50 ft heat throw
PTP200
166,000
BTU/hr output
15 ft max mount
53 ft heat throw
PTP250
207,500
BTU/hr output
18 ft max mount
62 ft heat throw
PTP300
249,000
BTU/hr output
19 ft max mount
69 ft heat throw
PTP400
332,000
BTU/hr output
21 ft max mount
74 ft heat throw
Ratings for elevations up to 2,000 ft. Not sure which size? Ask your branch.
SINCE 1916
The company that invented the category.
Arthur B. Modine started his company in Racine, Wisconsin in 1916. He went on to invent and patent the lightweight suspended unit heater, the design that heats shops and warehouses across North America today. Modine is still based in Racine and is one of the leading heating and ventilation manufacturers in North America.
Modine Manufacturing Co., Racine, Wisconsin.
Before you buy.
Still not sure? Stop by any branch or call ahead and we’ll have it pulled.
Shop Unit Heaters →
Ready when the cold is.
See every Modine unit heater API carries, with stock at your branch.
